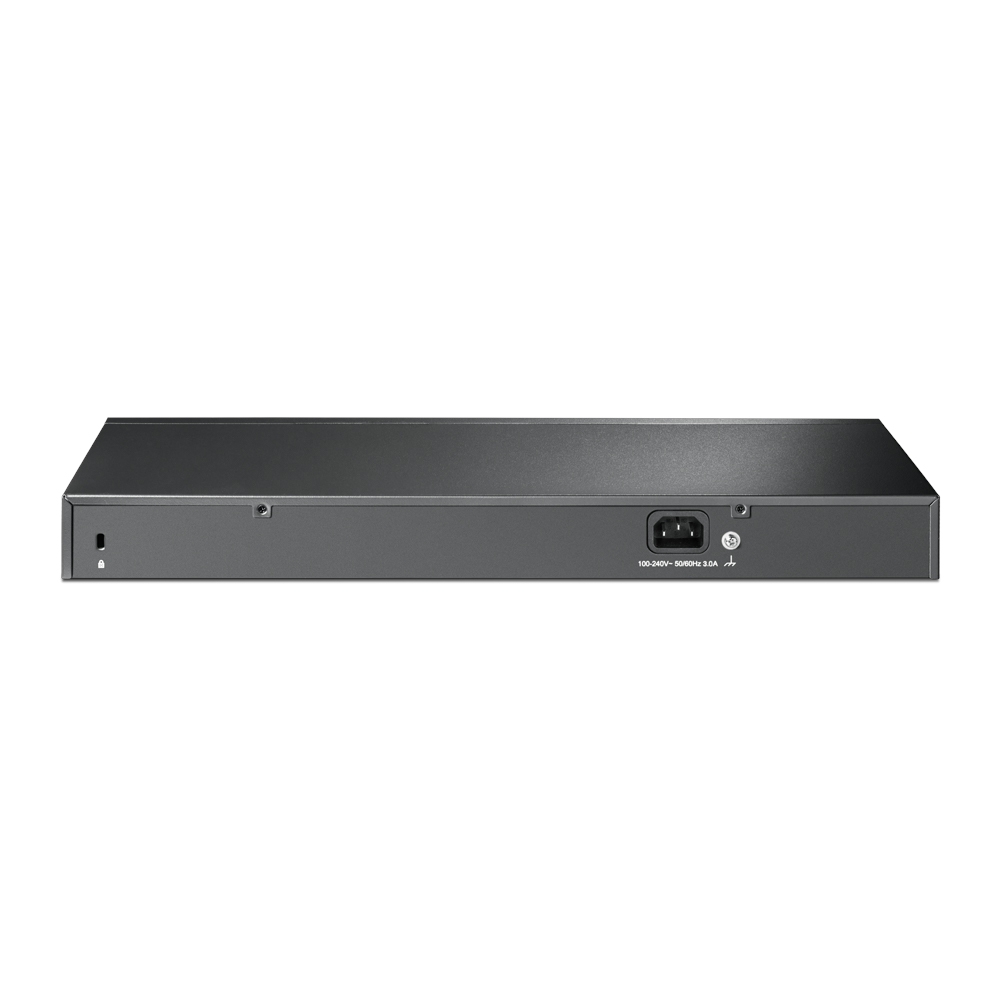

TPLINK /TL-SG1428PE V2.20 / 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
- -> : 24 10/100/1000Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports
- -> : PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
- -> : Priority Mode helps to guarantee the quality of sensitive application like video monitoring
- -> : PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
- -> : QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
- -> : Intelligent power management can protect the switch from overload
Specification:
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W
Dimensions ( W x D x H )
17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting
19
Max Power Consumption
27 W (no power device connected) 304.7 W (with 250W power device connected)
Max Heat Dissipation
92.1 BTU/h (no PD connected) 1,039.0 BTU/h (with 250 W PD connected)
